Real cases

The general workflow for a one-domain real case simulation is :

• define the domain location and initialize the physiographic surface fields (PREP_PGD)

• define the initial (surface and atmosphere) and atmospheric boundaries conditions (PREP_REAL_CASE)

• start the time-integration (MESONH)

• (optional) compute diagnostics (DIAG and SPECTRE)

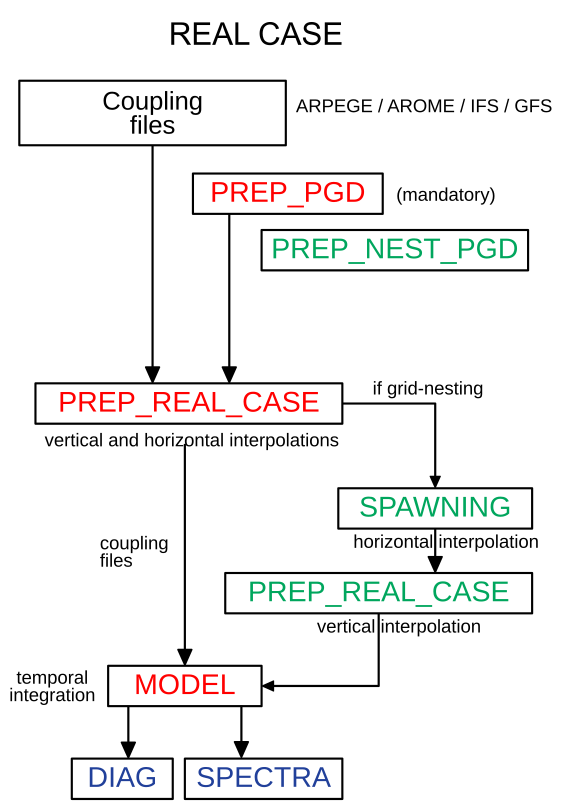

This workflow is described in the following figure :

Realistic simulation workflow

A few examples are described hereafter :

• One domain initialized and forced by ERA5
• Grid-nesting with 2 domains initialized and forced by ERA5

Note

If you need advance settings, please go to Namelist catalogue section.
