Marine shallow cumulus convection (BOMEX)
Case description
The Barbados Oceanographic and Meteorological Experiment (BOMEX) case simulates shallow cumulus convection over tropical ocean and is commonly used to evaluate shallow convection parameterizations and Large Eddy Simulation configurations. It is based on Siebesma et al. [2003].
Warning
This kind of simulation is not parallelized and can only be run on 1 core.
Note
You can find the workflow as well as the namelists and the scripts to launch this case here :
MNH-V6-0-0/examples/integration_cases/local/BOMEX
001_prep_ideal : directory to prepare the initial condition
002_mesonh : directory to run the model
003_python : directory to plot the figure
The different steps must be performed in the order indicated by the directory numbers.
Numerical set-up
Parameter |
Value |
|---|---|
Domain |
Cartesian flat domain |
Horizontal grid |
1 x 1 pt (1D) |
Horizontal resolution |
40 km |
Vertical grid |
75 levels (0–3000 m) |
Vertical spacing |
40–300 m stretched grid |
Parameter |
Value |
|---|---|
Integration length |
28800 s (8 h) |
Time step |
120 s |
Coriolis force |
Enabled |
Scheme |
Configuration |
|---|---|
Turbulence |
TKEL (1D, BL89) |
Cloud microphysics |
ICE3 |
Shallow convection |
EDKF |
Deep convection |
NONE |
Radiation |
NONE |
Parameter |
Value |
|---|---|
Sensible heat flux |
9.2 W m-2 |
Latent heat flux |
6.16e-5 kg m-2 s-1 |
Friction velocity |
0.28 m s-1 |
Roughness length (Z0) |
0.035 m |
Large-scale forcing |
Geostrophic forcing + subsidence above 2600 m |
Parameter |
Value |
|---|---|
LES diagnostics |
Averages over 18000–21600 s |
Validation

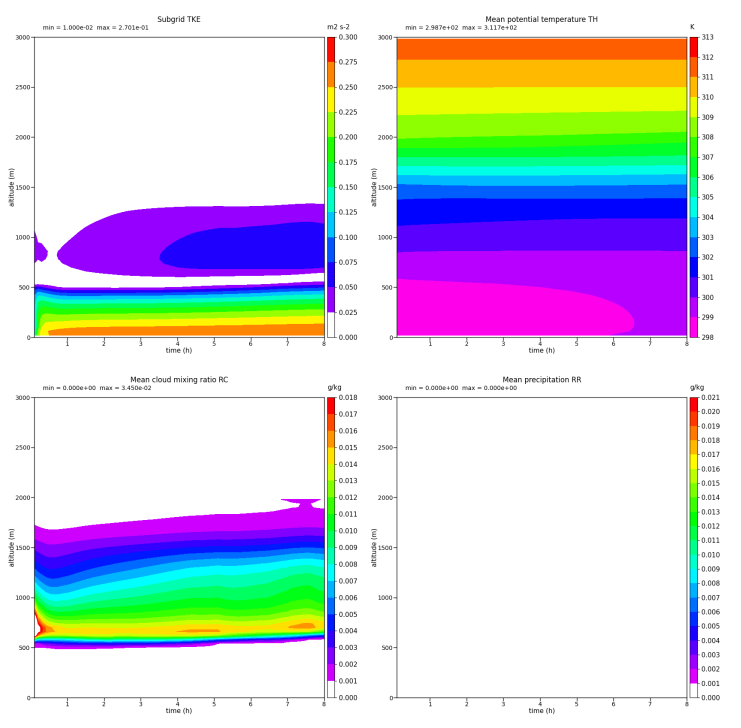

Figure for BOMEX
